PRODUCT ADVANTAGES
● Suitable for the assembly of lmL,2.25mL PFS and autoinjector components
● Assembling speed of 4-6 pcs/ min, which can support the production of clinical samples
● Real- time monitoring of assembling pressure
● Compatible with the products from main international manufacturer
Test project
Parameter

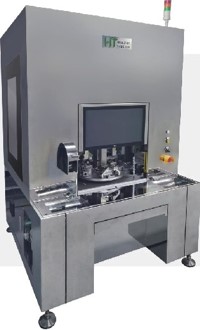

| Semi-Automatic Assembly Machine | Parameter value |
| External dimension | 910mm*1420mm*1900 |
| Operational tempo | Produces four in 28 seconds |
| Feeding mode | Manual |
| Input pressure | ≥0.6MPa |
| Input voltage | AC 220V 50Hz |
| Cleanliness | ＜100,000 class in equipment |
| Data detection method | Pressure sensor |
| Pass rate | ≥98% |
| Electronic scale base accuracy | 0.001g |
| Software control methods | Keyence plc |
| Software human machine interaction | Wirantone touch panel |
| Operating temperature | 20±5°C |
| Operating relative humidity | 30-60 percent non-condensation |
| Air environment | No dust,flammable and explosive,corrosive gases |
| Working system | Progression |
| Safety protection | Safety door lock+dual start button+safety light curtain+emergency stop switch |
