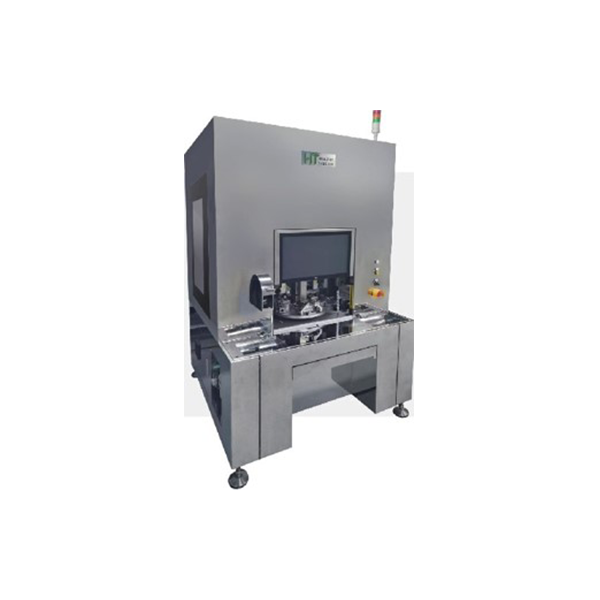

autoinjector testing machine

· One pen covers all testing items and complies with regulatory requirements.

· Test data is traceable and auditable.

· Can be used for production control and finished product release.

· Compatible with products from major international instrument manufacturers.

Description

Testing Machine	Parameter Value
External dimensions	1100mm1240mm1950mm
Beat	6-8 pcs/minute
Material supply method	Manual
Input air pressure	≥0.6MPa
Input voltage	AC 220V，50Hz
Cleanliness	Equipment <100,000 class
Data detection methods	Pressure sensor, vision inspection, electronic scale
Sensor basic accuracy	0.2 N
Visual basic accuracy	0.02mm
Basic accuracy of electronic scales	0.001g
Software control method	PC
Software human-computer interaction methods	Industrial PC
Product information recording method	Barcode scanner
Operating temperature	20±5℃
Operating relative humidity	30%-60% No condensation
Air environment	Dust-free, non-flammable and explosive, and free of corrosive gases.
Work system	Continuous
Safety protection	Safety door lock + double start button + safety light curtain + emergency stop switch
