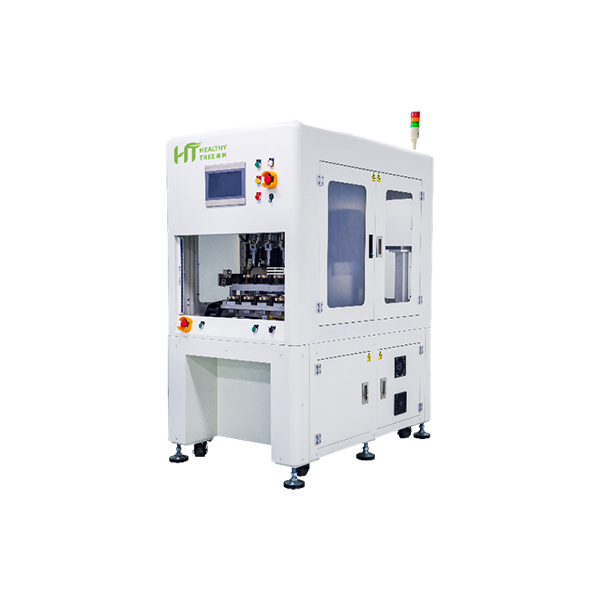

Semi-automatic autoinjector assembly machine

· Suitable for assembling 1mL and 2.25mL PFS and auto-injector components

· Assembly speed 4-6 units/minute, sufficient for clinical sample production

· Real-time monitoring of assembly pressure

· Compatible with products from major international medical device manufacturers

Description

Semi-automatic Assembly Machine	Parameter Value
External dimensions	910mm1420mm1900mm
Running rhythm	28s/ 4pcs
Material supply method	Manual
Input air pressure	≥0.6MPa
Input voltage	AC 220V 50Hz
Cleanliness	Equipment <100,000 class
Data detection methods	Pressure sensor
Pass rate	≥98%
Basic accuracy of electronic scales	0.001g
Software control method	Keyence PLC
Software human-computer interaction methods	Weintek Touchscreen
Operating temperature	20±5℃
Operating relative humidity	30%-60% No condensation
Air environment	Dust-free, non-flammable and explosive, and free of corrosive gases.
Work system	Continuous
Safety protection	Safety door lock + double start button + safety light curtain + emergency stop switch
